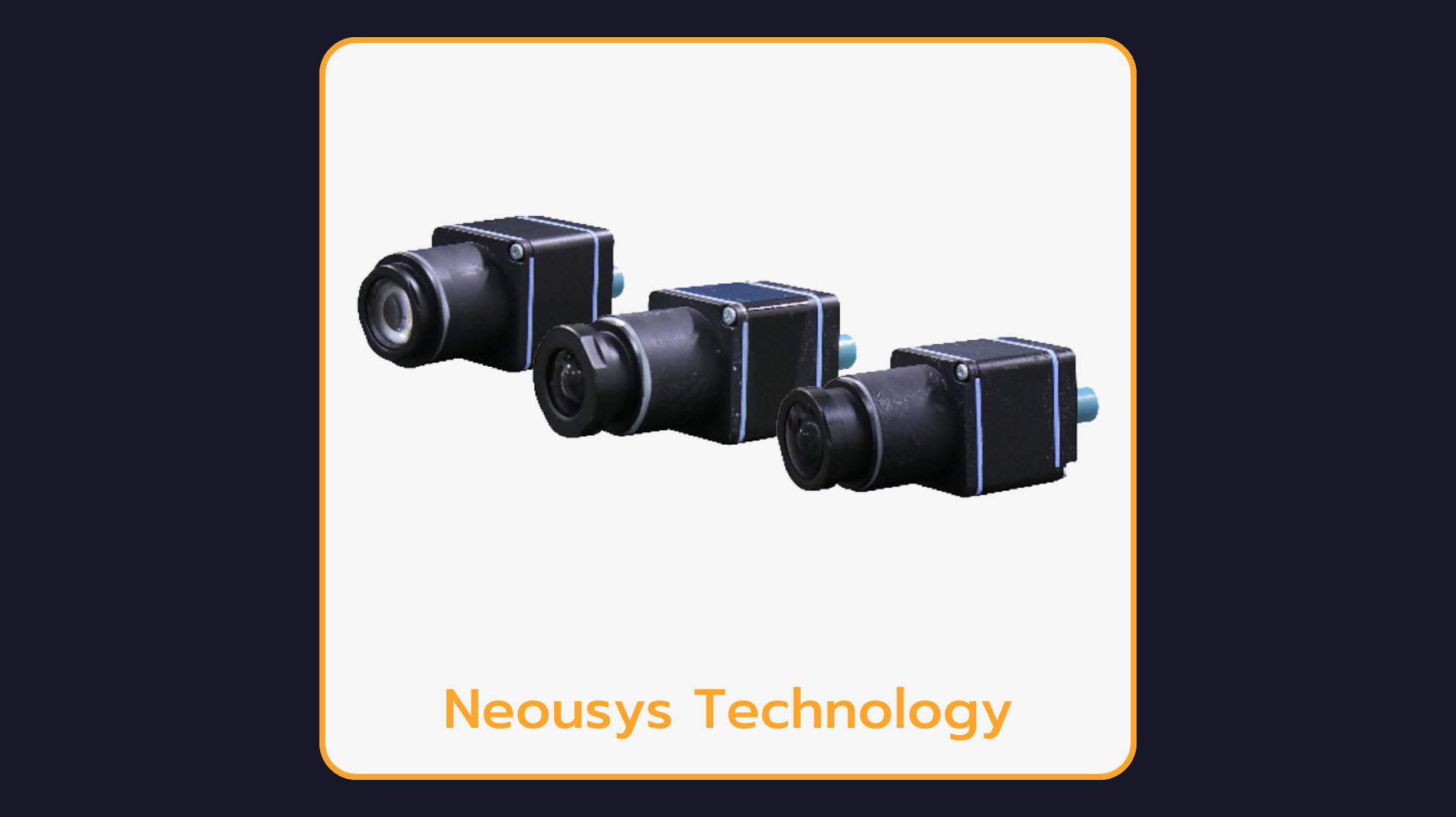

Neousys Technology AC-IMX490 Series
5MP GMSL2 Camera Sensor
SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP,
2880x1860 uncompressed UYVY video output,
IP67 + IP69K waterproof on the lens side,
Enhanced edge focus and lens centering via 5-axis active adjustment.
AC-IMX490 Series Technical Specifications
COMS | SONY IMX490, 1/1.55” optical format with 3μm x 3μm pixel size | ||
ISP | GEO SEMI GW5300 | ||
LED Flicker Mitigation (LFM) | Yes | ||
High Dynamic Range (HDR) | 120dB | ||
Resolution | 5MP (2880 x 1860) | ||
FPS | 30 FPS (Configurable by external framesync) | ||
Video Format | YUV422 (UYVY) | ||
Serializer | MAX9295 | ||
Waterproof | IP67 + IP69K on the lens side IP67 on the FAKRA side with waterproof FAKRA connector | ||
Current Consumption | ≤ 230mA @ 12V | ||
Connector | Male FAKRA Z connector | ||
Operating Temperature | 40°C ~ 85°C | ||
| AC-IMX490-H30 | AC-IMX490-H60 | AC-IMX490-H120 |
HFOV | 30° | 62.5° | 120° |
F No. | F1.6 | F1.7 | F1.6 |
Object Distance | 28 M to infinity | 7 M to infinity | 2.5 M to infinity |
Center Deviation | ± 5 pixel on 50cm object | ± 5 pixel on 50cm object | ± 5 pixel on 50cm object |
Dimension | 28 x 28 x 53.5 mm | 28 x 28 x 59 mm | 28 x 28 x 59 mm |
Weight | 63 g | 63 g | 67.4 g |
What Is the AC-IMX490 Series Used For?
Typical applications of the AC-IMX490 Series include:
Autonomous vehicle perception and ADAS development
GMSL2-based multi-camera vision systems
Machine vision and robotics
Surround-view and driver monitoring setups
Product Line
AC-IMX490-H30
AC-IMX490-H60
AC-IMX490-H120
Ordering Options
AC-IMX490-Series come with 7m or 15m FAKRA Cable
Frequently Asked Questions
What is the AC-IMX490 Series?
SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP, 2880x1860 uncompressed UYVY video output, IP67 + IP69K waterproof on the lens side, Enhanced edge focus and lens centering via 5-axis active adjustment.
How does the AC-IMX490 Series connect to an in-vehicle computer?
The AC-IMX490 Series uses the automotive GMSL2 serial link, which carries video, power and control over a single coaxial cable. Pair it with a GMSL2 frame grabber card — such as the Neousys PCIe-NPL54 available at Leo Drive — to bring multi-camera feeds into your compute platform.
Where is the AC-IMX490 Series available?
The AC-IMX490 Series is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.
How can I get the datasheet and technical documents for the AC-IMX490 Series?
Please contact Leo Drive to request the datasheet, user manual and other technical documents for the AC-IMX490 Series.
