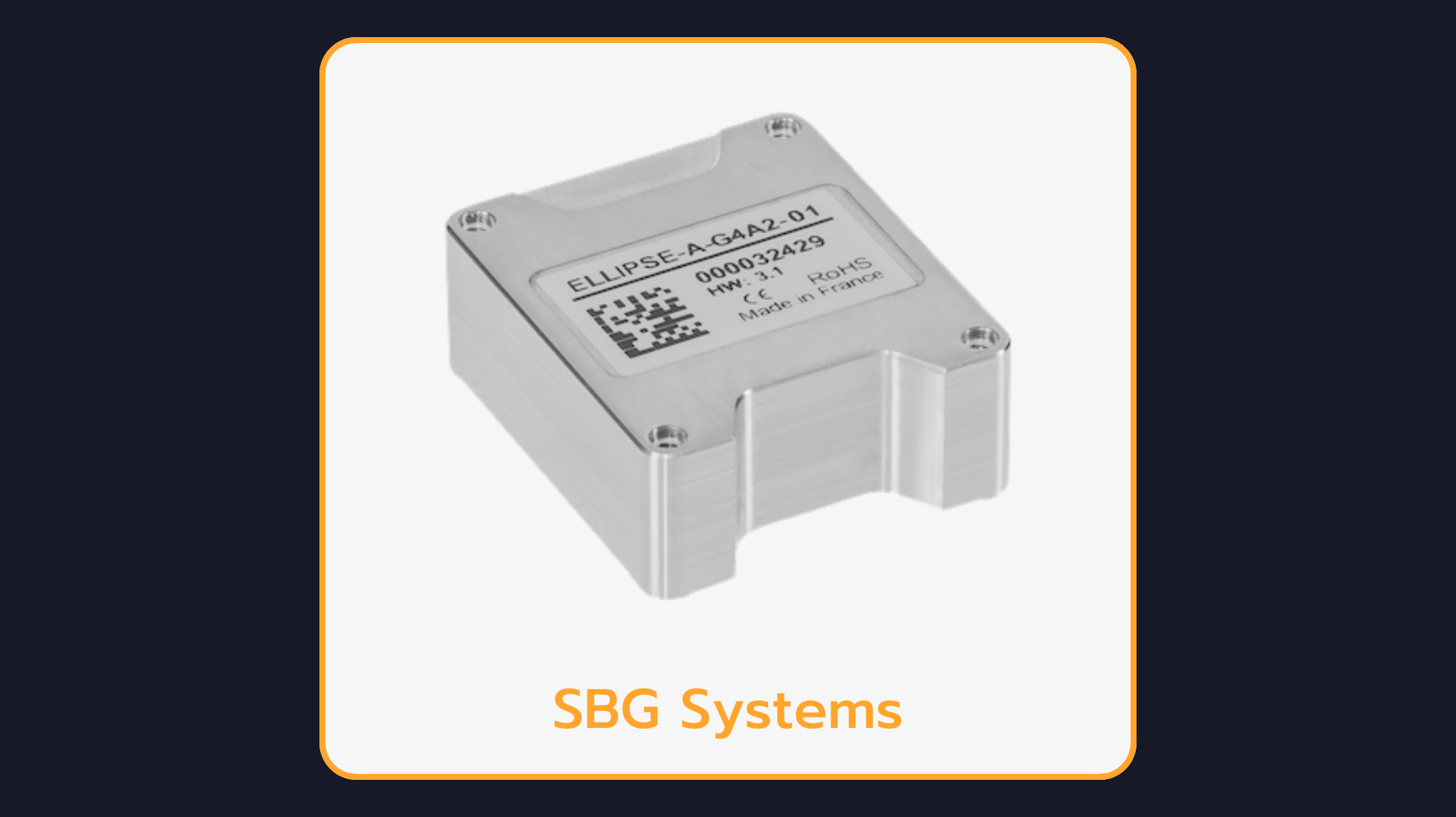

SBG Systems OEM Ellipse-A: High-Performance AHRS Sensor
0.1° Roll/Pitch & 0.8 Magnetic Heading
OEM Ellipse-A belongs to Ellipse series line of miniature, high-performance MEMS-based Inertial Systems providing a reliable orientation and heave in a compact package. It includes an Inertial Measurement Unit (IMU), a built-in magnetometer and runs an on-board latest generation sensor fusion algorithm.This OEM version embeds high performance, industrial grade MEMS accelerometers and gyroscopes. Coupled with a cutting edge calibration across its entire operating temperature range and advanced filtering techniques, these accelerometers and gyroscopes will provide excellent performance, even in highly vibrating environment.
OEM Ellipse-A: High-Performance AHRS Sensor Technical Specifications
Accuracy (RMS) | |
Roll / Pitch: | 0.1° |
Heading: | 0.8° Magnetic |
Velocity: | - |
Navigation: | - |
Heave Performance | |
Accuracy: | 5 cm or 5% - Valid for Marine Version |
Wave Period: | Up to 15 s (Auto-Adjusting) |
Interfaces | |
Available Data: | Euler angles, quaternion, velocity, position, heave, calibrated sensor data, delta angles & velocity, barometric data, status, GPS data, UTC time, GNSS raw data (Post-processing), etc. |
Aiding Sensors: | GNSS, Odometer, RTCM |
Output Rate: | 200 Hz, 1,000 Hz (IMU Data) |
Main Serial Interface: | RS-232, RS-422, USB - Up to 921,600 bps |
Serial Protocols: | Binary eCom, NMEA, ASCII, TSS |
CAN Interface: | CAN 2.0A/B - Up to 1 Mbit/s |
Pulses: | Inputs: Events, PPS, DMI (Direction or Quadrature) Outputs: Synchronization (PPS) 2 Inputs / 1 Output |
Environmental, Mechanical & Electrical | |
Input Voltage: | 2.5 - 5.5 V |
Power Consumption: | < 300 mW |
Specified Temperature: | -40 to 85 °C |
Shock Limit: | 500 g |
Operating Vibration: | 8 g RMS (20 Hz to 2 k Hz per MIL-STD 810G) |
MTBF: | 50,000 Hours |
Size (Box Version): | 46 x 45 x 24 mm |
Weight (Box Version): | 45 g |
Size (OEM Version): | 29.5 x 25.5 x 11 mm |
Weight (OEM Version): | 8g |
What Is the OEM Ellipse-A: High-Performance AHRS Sensor Used For?
UAV Navigation
Gimbaled Camera
Unmanned Ground Vehicle (UGV)
Instrumented Buoy
Antenna Pointing & SATCON On-The-Move (SOTM)
Unmanned Sea Vehicle (USV)
Product Line
| Ellipse-A | Ellipse-E | Ellipse-N | Ellipse-D |
Application | Motion Sensor | INS with your own GNSS receiver | INS for dynamic and automotive applications | INS for low dynamics and robust heading |
Heading | Magnetic | Magnetic or GNSS | Magnetic or Mono-antenna GNSS | Dual antenna GNSS |
Heave: 5 cm or 5% | ✓ | ✓ | ✓ | ✓ |
Odometer Aiding |
| Pulse / CAN OBD-II | Pulse / CAN OBD-II | Pulse / CAN OBD-II |
Navigation |
| Navigation with external GNSS receiver | L1/L2 GNSS receiver 1 cm RTK GNSS Accuracy | L1/L2 GNSS receiver 1 cm RTK GNSS Accuracy |
Post-Processing |
| ✓ | ✓ | ✓ |
Ordering Options
Ordering options for SBG Systems' Ellipse-A OEM:
SBG Systems | Development Kit that includes evaluation board and USB cable.
Frequently Asked Questions
What is the OEM Ellipse-A: High-Performance AHRS Sensor?
OEM Ellipse-A belongs to Ellipse series line of miniature, high-performance MEMS-based Inertial Systems providing a reliable orientation and heave in a compact package. It includes an Inertial Measurement Unit (IMU), a built-in magnetometer and runs an on-board latest generation sensor fusion algorithm.This OEM version embeds high performance, industrial grade MEMS accelerometers and gyroscopes.
What is the difference between an AHRS and an IMU?
An IMU outputs raw angular rate and acceleration, while an AHRS such as the OEM Ellipse-A: High-Performance AHRS Sensor runs onboard sensor fusion to output ready-to-use roll, pitch and heading — no external estimation algorithm required.
Where is the OEM Ellipse-A: High-Performance AHRS Sensor available?
The OEM Ellipse-A: High-Performance AHRS Sensor is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.
How can I get the datasheet and technical documents for the OEM Ellipse-A: High-Performance AHRS Sensor?
Please contact Leo Drive to request the datasheet, user manual and other technical documents for the OEM Ellipse-A: High-Performance AHRS Sensor.
