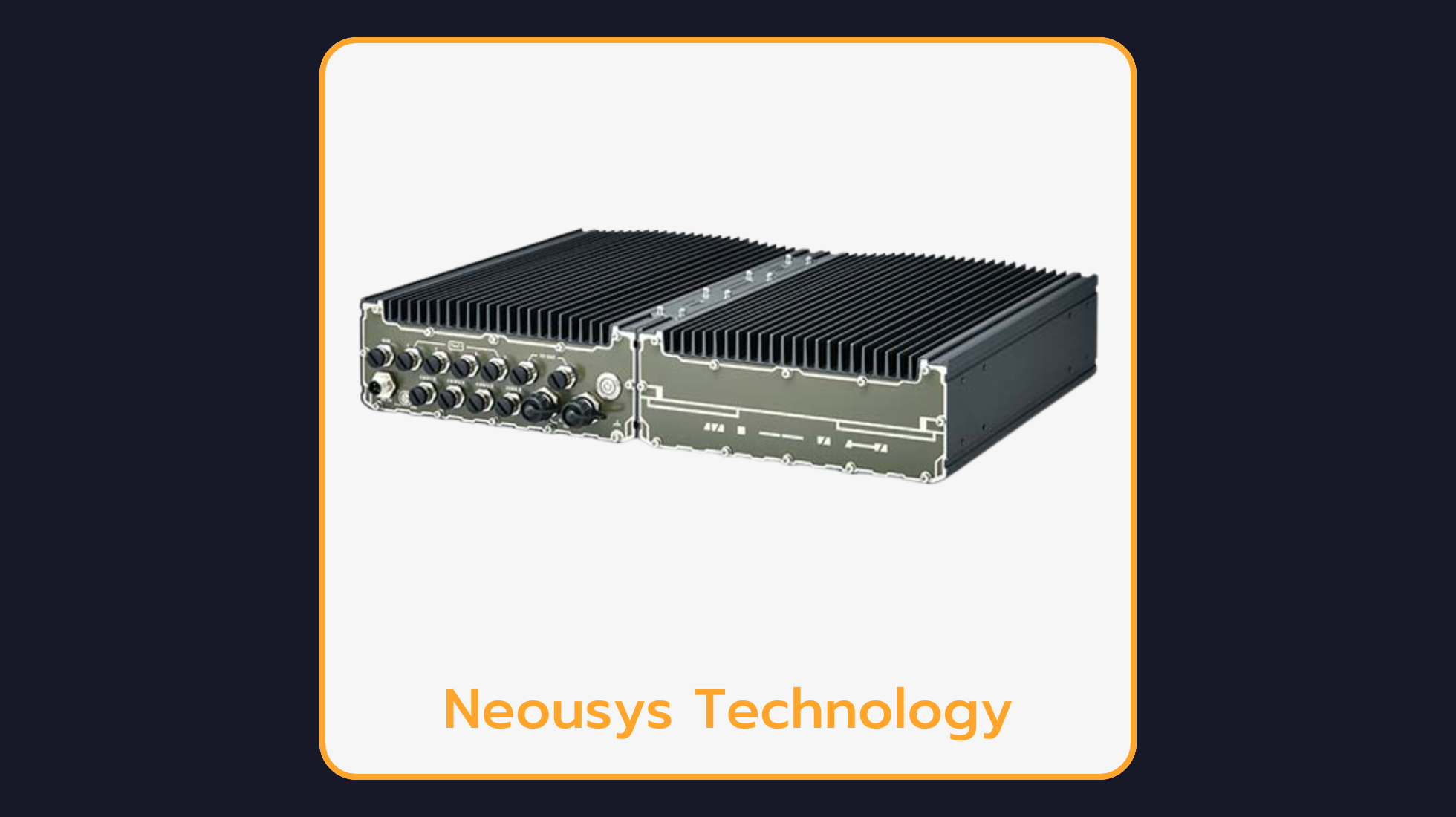

Neousys Technology SEMIL-2000GC Series: NVIDIA® L4 IP69K Waterproof Computer
Supporting Intel® 14th/13th/12th-Gen Core™ CPU with 2xM12 10GbE, 4xM12 PoE+ Ports
Neousys SEMIL-2000GC Series is an IP69K-rated waterproof GPU computing platform designed for extreme edge AI applications. Powered by Intel® 13th/12th-Gen Core™ processors, it supports NVIDIA® L4 GPUs, delivering up to 2.5 times the performance of the Tesla T4. With a rugged stainless steel and aluminum chassis, wide operating temperature range (-40°C to 70°C), and MIL-STD-810H compliance, SEMIL-2000GC is ideal for autonomous vehicles, industrial automation, and outdoor AI deployments in the harshest environments.
SEMIL-2000GC Series Technical Specifications
System Core | |
Processor | Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
Supporting Intel® 12th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP):
|
Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
Acceleration GPU | NVIDIA® L4 GPU |
I/O Interface | |
Ethernet | 2x 10GbE Ethernet 4x 2.5GbE Ethernet 1x GbE Ethernet |
PoE+ | 4x IEEE 802.3at PoE+ PSE with 100 W total power budget |
USB | 2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort) 2x USB 2.0 ports |
Serial Port | 2x isolated 3-wire RS-232 ports (COM1/ COM2) 1x isolated 3-wire RS232 (COM3) & 1x RS-422/ 485 port (COM4) |
Video Port(Integrated Graphics) | 2x Type-C USB connector supporting DP output |
CAN Bus | 2x isolated CAN 2.0 port, supporting SocketCAN in Linux |
Storage Interface | |
SATA HDD | 2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1 |
M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
Expansion Bus | |
PCI Express | 3x full-size mini PCI Express socket with SIM slot |
M.2 | 1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module 1x M.2 2230 E key socket for Wi-Fi |
Mechanical | |
Dimension | 440mm (W) x 310mm (D) x 90.5mm (H) |
Weight | 12 Kg |
Environmental | |
Operating Temperature | With 35W CPU -40°C to 70°C With CPU operating >= 65W CPU -40°C to 70°C (configured as 35W TDP mode) -40°C to 60°C (configured as 65W TDP mode) |
Why Choose the SEMIL-2000GC Series?
P69K waterproof GPU computer with NVIDIA® L4 GPU
-40°C to 70°C wide-temperature fanless operation
2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ via M12 X-coded connectors
2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
8V to 48V wide-range DC input with reverse polarity protection and built-in ignition power control
MIL-STD-810H compliant
What Is the SEMIL-2000GC Series Used For?
Typical applications of the SEMIL-2000GC Series include:
In-vehicle AI inference for autonomous driving development
Real-time sensor fusion of lidar, radar and camera data
Machine vision and industrial AI inspection
Mobile robotics and AGV compute platforms
Edge deployment of deep learning models in harsh environments
Ordering Information
SEMIL-2047GC: 19" rack mount IP69K waterproof computer including NVIDIA® L4, supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor with 2x M12 10GbE and 4x M12 PoE+ ports
Optional Accessories
PA-280W-CW6P-2P: 280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/SEMIL
PA-600W-C4PY-4P: 600W AC-DC power adapter 24V 25A, 85~264VAC, -20~+70°C, w/ 4PY Terminal to 4P End Terminal cable for AWP/SEMIL
Frequently Asked Questions
What is the SEMIL-2000GC Series?
Neousys SEMIL-2000GC Series is an IP69K-rated waterproof GPU computing platform designed for extreme edge AI applications. Powered by Intel® 13th/12th-Gen Core™ processors, it supports NVIDIA® L4 GPUs, delivering up to 2.5 times the performance of the Tesla T4.
Can the SEMIL-2000GC Series run autonomous driving software stacks?
Yes. The SEMIL-2000GC Series is built for in-vehicle and edge AI workloads — GPU-accelerated inference, multi-sensor data acquisition and wide-temperature operation — making it suitable for autonomous driving development platforms and robotics compute.
Where is the SEMIL-2000GC Series available?
The SEMIL-2000GC Series is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.
How can I get the datasheet and technical documents for the SEMIL-2000GC Series?
The datasheet, user manual and other technical documents for the SEMIL-2000GC Series are available on the manufacturer’s website. You can also contact Leo Drive for documentation and integration support.
