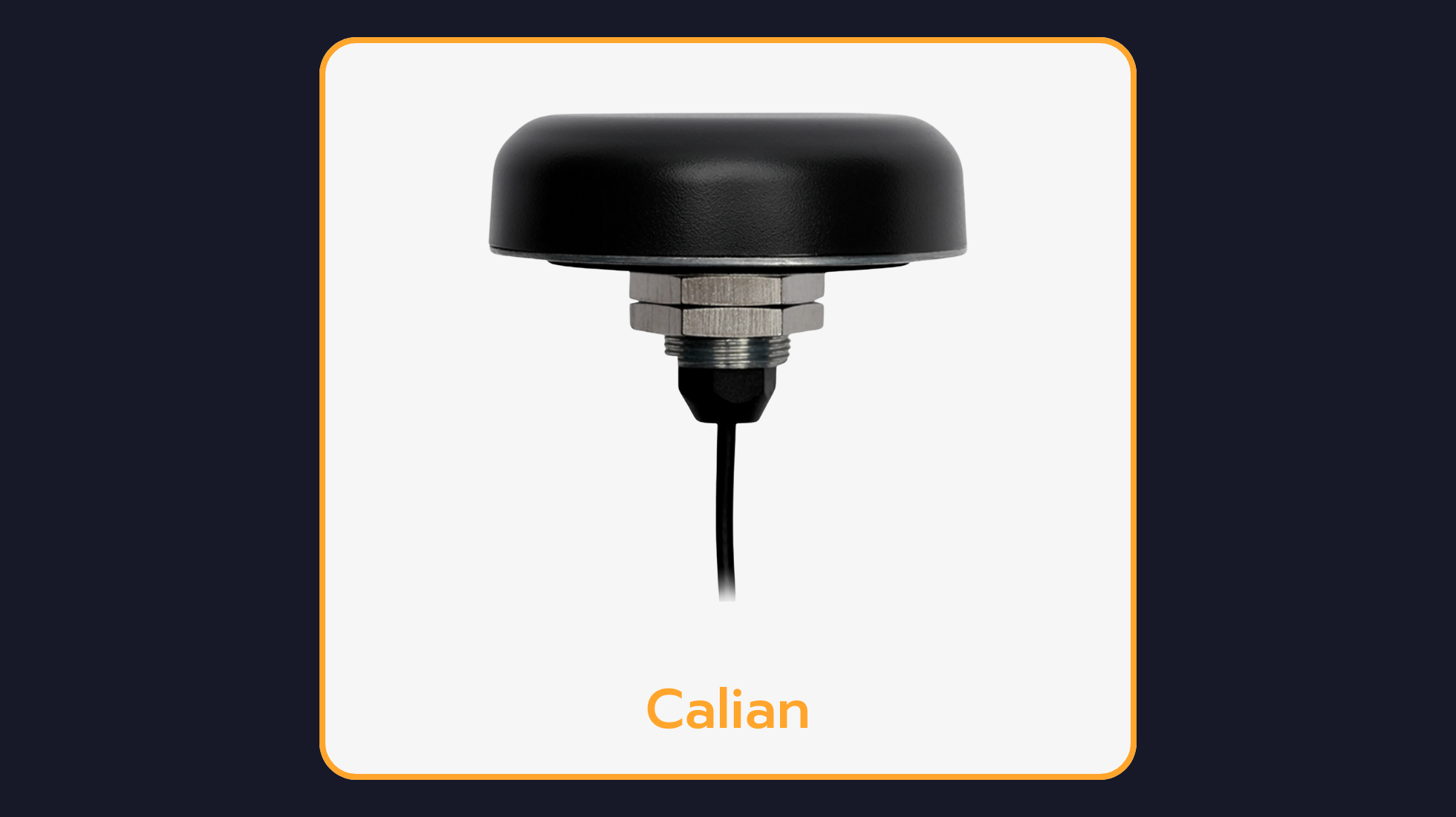

Calian TW5354 Multi-Constellation Smart GNSS Antenna

High-Sensitivity GNSS Timing for Industrial and Automotive Applications

Calian TW5354 Multi-Constellation Smart GNSS Antenna is designed for precision timing, network synchronization, and tracking applications. With 72 high-sensitivity tracking channels and Accutenna™ technology, it delivers exceptional signal quality with enhanced jamming immunity. Housed in an IP69K-rated enclosure, it supports GPS, Galileo, GLONASS, BeiDou, and SBAS, making it ideal for industrial and automotive applications in harsh environments.

TW5354 Multi-Constellation Smart GNSS Antenna Technical Specifications

Why Choose the TW5354 Multi-Constellation Smart GNSS Antenna?

• Multi-Constellation Receiver/Antenna

• Concurrent tracking of 3 constellations

• 72 Channel simultaneous operation

• High performance tracking (-164 dBm)

• WAAS, EGNOS,MSAS & GAGAN + QZSS

• DGPS corrections using RTCM input

• Navigation rates 1 to 5 Hz

• 1PPS RS422 outputs

• Pre- and Post- LNA filtering

• Superior multi-path signal rejection

• Industrial grade IP69K enclosure

What Is the TW5354 Multi-Constellation Smart GNSS Antenna Used For?

Typical applications of the TW5354 Multi-Constellation Smart GNSS Antenna include:

• Precision agriculture guidance and auto-steering

• Machine control for construction and mining equipment

• Autonomous vehicles and mobile robotics

• Marine positioning and heading

• Fleet management and telematics

Ordering Information

Part Number: 33-5354-7-yy-zz-PC0

Where:

• PCO = NMEA out, no adaptor cable.

• yy = Radome (00=grey conical, 10-grey low profile, 01-white conical, 11=white low profile)

• zz = Cable length in meters. Standard is 5m. (15m and 25m are special order only)

TW5354 SDK Test Adaptor required for programming( 33-0095-1)

Please refer to Tallysman's Ordering Guide to review available radomes and connectors at: https://www.tallysman.com/resource/tallysman-ordering-guide/

Frequently Asked Questions

What is the TW5354 Multi-Constellation Smart GNSS Antenna?

Calian TW5354 Multi-Constellation Smart GNSS Antenna is designed for precision timing, network synchronization, and tracking applications. With 72 high-sensitivity tracking channels and Accutenna™ technology, it delivers exceptional signal quality with enhanced jamming immunity.

What is the advantage of a smart antenna like the TW5354 Multi-Constellation Smart GNSS Antenna?

A smart antenna combines the GNSS receiver and antenna in one sealed housing, so the TW5354 Multi-Constellation Smart GNSS Antenna delivers positioning over a single cable interface without a separate receiver box — reducing installation time, cabling and integration effort.

Where is the TW5354 Multi-Constellation Smart GNSS Antenna available?

The TW5354 Multi-Constellation Smart GNSS Antenna is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.

How can I get the datasheet and technical documents for the TW5354 Multi-Constellation Smart GNSS Antenna?

The datasheet, user manual and other technical documents for the TW5354 Multi-Constellation Smart GNSS Antenna are available on the manufacturer’s website. You can also contact Leo Drive for documentation and integration support.
