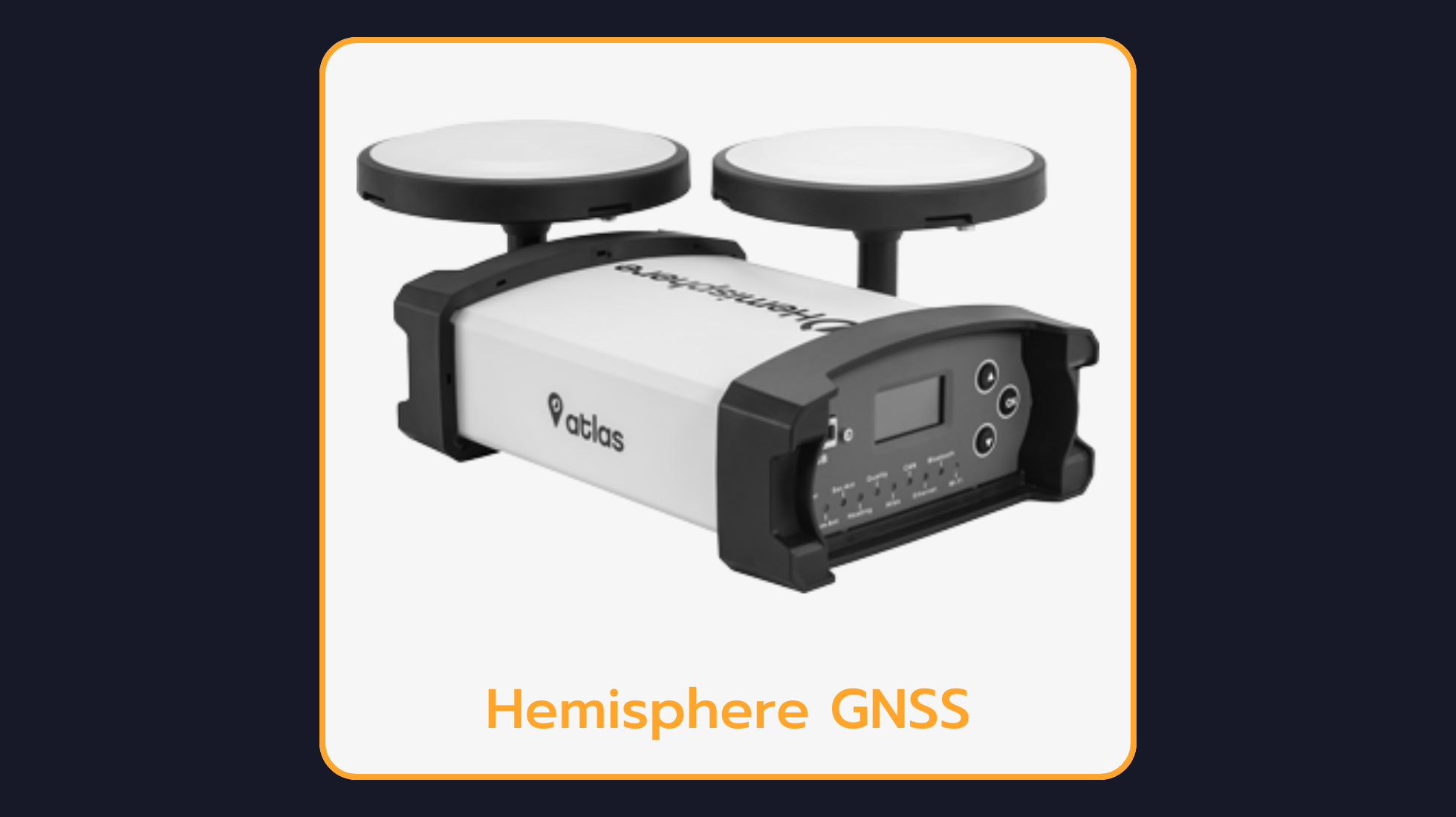

Hemisphere GNSS Vector™ VS1000 GNSS Receiver
High-Precision GNSS Receiver with Sub-Centimeter Accuracy
Hemisphere GNSS Vector VS1000 GNSS Receiver is designed for the marine market, delivering precise heading and positioning with sub-centimeter accuracy. Supporting GPS, GLONASS, BeiDou, Galileo, and Atlas L-Band, it ensures reliable performance in harsh environments with an IP67-rated enclosure. VS1000 features integrated Ethernet, CAN, USB, Bluetooth, and Wi-Fi for versatile connectivity, making it ideal for challenging marine and industrial applications.
Vector™ VS1000 GNSS Receiver Technical Specifications
GNSS Receiver Specifications | |
Receiver Type: | Vector GNSS RTK Receiver |
Signals Received: | GPS, GLONASS, BeiDou, Galileo, & Atlas |
Channels: | 1059 |
GPS Sensitivity: | -142 dBm |
SBAS Tracking: | 2-channel, parallel tracking |
Update Rate: | 10 Hz standard, 20 Hz optional |
Options: | SBAS, Atlas (L-band), RTK |
Accuracy | |
| RMS (67%) |
Single Point: | 2.4 m |
SBAS: | 0.6 m |
Atlas H10: | 0.08 m |
Atlas H30: | 0.3 m |
Atlas Basic: | 0.5 m |
RTK: | 8 mm + 1 ppm |
Heading: | 0.2° @ 0.5 m antenna separation. 0.1° @ 1.0 m antenna separation. 0.05° @ 2.0 m antenna separation. 0.02° @ 5.0 m antenna separation. 0.01° @ 10.0 m antenna separation |
Pitch/Roll | 1° |
Heave | 30 cm (DGPS) 10 cm (Atlas) 5 cm (RTK) 1 |
Communications | |
Ports: | 1x CAN, 1x Ethernet, 1x USB, 1x 12-pin multi-purpose (RS232, RS422, CAN, 1PPS, Event Marker) |
Baud Rates: | 4800 - 115200 |
Radio Interfaces: | Bluetooth 2.0 (Class 2), Wi-Fi 2.4 GHz |
Correction I/O Protocol: | Hemisphere GNSS proprietary ROX format, RTCM v2.3, RTCM v3.2, CMR, CMR+ |
Data I/O Protocol: | NMEA 0183, Hemisphere GNSS binary |
Environmental, Mechanical & Electrical | |
Supply Voltage: | 8 to 36 VDC |
Power Consumption: | < 6.2 W nominal (GNSS L1/L2 L-band) < 5.3 W nominal (GNSS L1/L2 RTK) |
Dimensions: | 23.2 L x 16.5 W x 7.9 H (cm) 9.1 L x 6.5 W x 3.1 H (in) |
Weight | 1.7 kg |
Operating Temperature: | -40°C to +70°C |
Antenna LNA gain: | 30dB |
Aiding Devices | |
Gyro: | Provides fast reacquisition and reliable heading for short periods when loss of GNSS has occurred |
Tilt Sensors: | Provide pitch, roll data and assist in fast start-up and reacquisition of heading solution |
Why Choose the Vector™ VS1000 GNSS Receiver?
Athena™ RTK and Atlas® L-band capable.
Extremely accurate heading (to 0.01° RMS).
Multi-frequency GPS/GLONASS/BeiDou/Galileo.
Purpose-built for the most challenging environments.
Supports Ethernet, CAN, Serial, USB, Bluetooth, and Wi-Fi.
Powerful WebUI accessed via Wi-Fi plus a 128x64 display and 10 multi-color LEDs.
What Is the Vector™ VS1000 GNSS Receiver Used For?
Typical applications of the Vector™ VS1000 GNSS Receiver include:
RTK centimeter-level positioning for autonomous systems
Surveying, mapping and GIS data collection
Autonomous vehicle and robotics localization
Timing and synchronization applications
UAV navigation and photogrammetry
What’s in the Package?
VS1000 Receiver.
CBL, IO, VS1000, STR 12-PIN TO 2XDB9, 3M.
10m TNC-TNC Cable.
Antenna must be ordered separately.
mFreq antenna is required to receive Atlas corrections.
Antennas Options:
A21 Antenna (sFreq, mGNSS, L-Band).
A25 Antenna (sFreq, mGNSS, L-Band).
A31 Antenna (sFreq, mGNSS, Beacon, L-Band).
A42 Antenna (mFreq, mGNSS, L-Band).
A43 Antenna (mFreq, mGNSS, L-Band).
A45 Antenna (mFreq, mGNSS, L-Band).
A52 Geodetic Antenna (mFreq, mGNSS, L-Band).
Co-Axial Antenna Cables:
30m Low-loss TNC-TNC Antenna Cable.
1m TNC-TNC Antenna Cable.
10m TNC-TNC Antenna Cable.
5m TNC-TNC Antenna Cable.
Antenna Mounting Accessories:
V1X3 Mounting Bracket (Black).
Threaded Extension (1" - 5/8").
R/VS Series Mounting Assembly.
A52 Mounting Assembly.
A21/A42 Mounting Assembly.
A31/A43 Mounting Assembly.
Magnetic Mounting Assembly.
Accessories:
CBL, IO, VS1000, STR 12-PIN TO 2XDB9, 3M.
Optional Firmware:
RTK Activation.
mFreq activation.
20 Hz activation.
Frequently Asked Questions
What is the Vector™ VS1000 GNSS Receiver?
Hemisphere GNSS Vector VS1000 GNSS Receiver is designed for the marine market, delivering precise heading and positioning with sub-centimeter accuracy. Supporting GPS, GLONASS, BeiDou, Galileo, and Atlas L-Band, it ensures reliable performance in harsh environments with an IP67-rated enclosure.
What is included with the Vector™ VS1000 GNSS Receiver?
The standard package includes: VS1000 Receiver; CBL, IO, VS1000, STR 12-PIN TO 2XDB9, 3M; 10m TNC-TNC Cable. See above for optional extras where available.
Does the Vector™ VS1000 GNSS Receiver support RTK positioning?
Supported correction methods and accuracy figures are listed in the specifications above. For centimeter-level RTK workflows you will also need a corrections source (base station or NTRIP service); Leo Drive can advise on a complete setup around the Vector™ VS1000 GNSS Receiver.
Where is the Vector™ VS1000 GNSS Receiver available?
The Vector™ VS1000 GNSS Receiver is available through Leo Drive in the following region: Turkey. For other regions, please contact Leo Drive.
How can I get the datasheet and technical documents for the Vector™ VS1000 GNSS Receiver?
The datasheet, user manual and other technical documents for the Vector™ VS1000 GNSS Receiver are available on the manufacturer’s website. You can also contact Leo Drive for documentation and integration support.
